Thinfinity Workspace 7: Personalize Your Workspace with Custom Themes

New Theme customization API in Thinfinity® Workspace

Product: Thinfinity Workspace
Version: 7 and later

Introduction


The new theme customization API in Thinfinity Workspace version 7 allows users to personalize the visual style of the entire interface with options such as Light, Dark and Blue themes, as well as the ability to create fully customized themes, enabling white labeling of Workspace through configuration and use of CSS.

Out of the box, any user will be able to choose the color layout from these options:

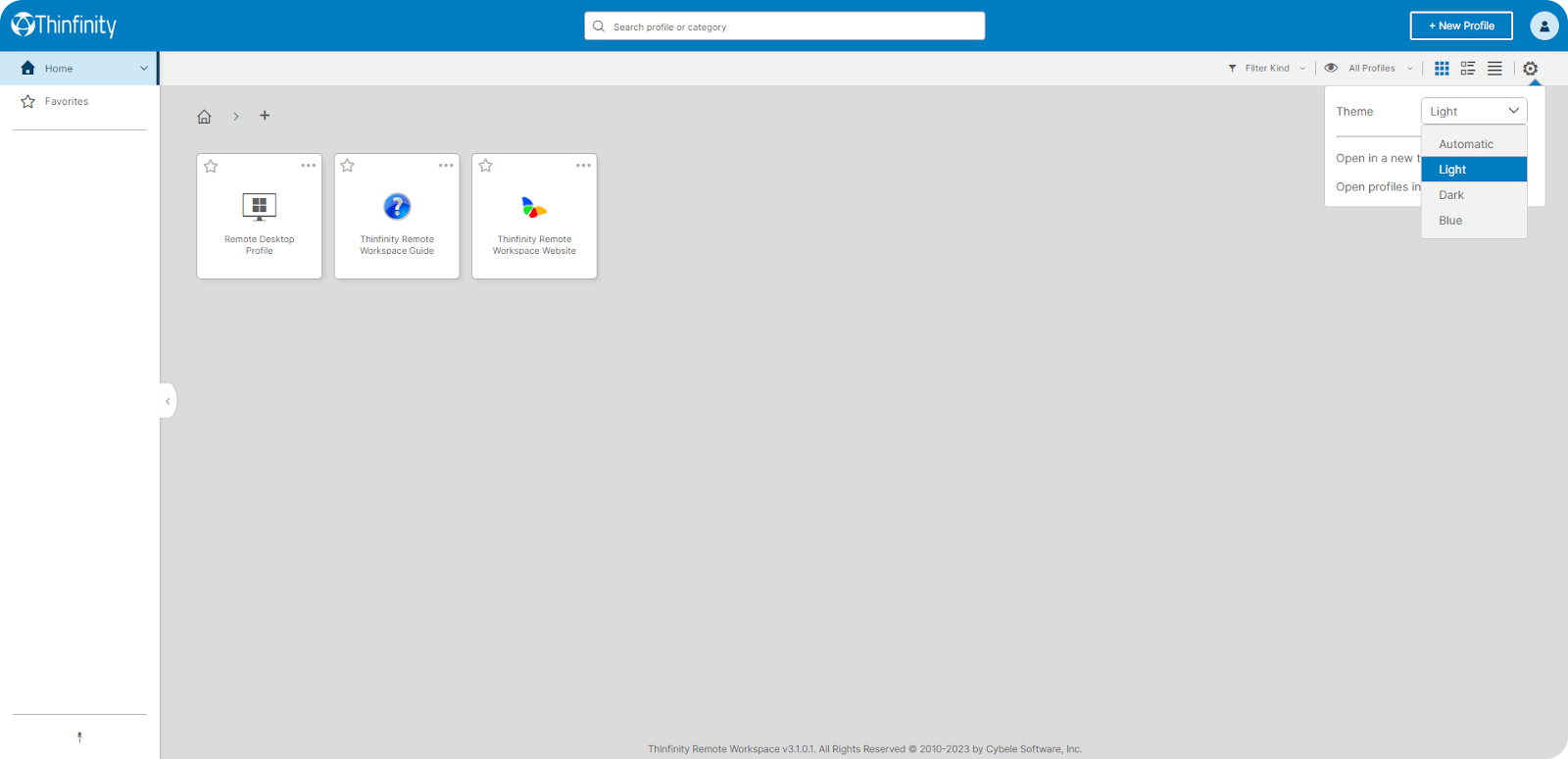

Light: This is the default theme when the main theme of the operating system (or browser) is in Light mode.

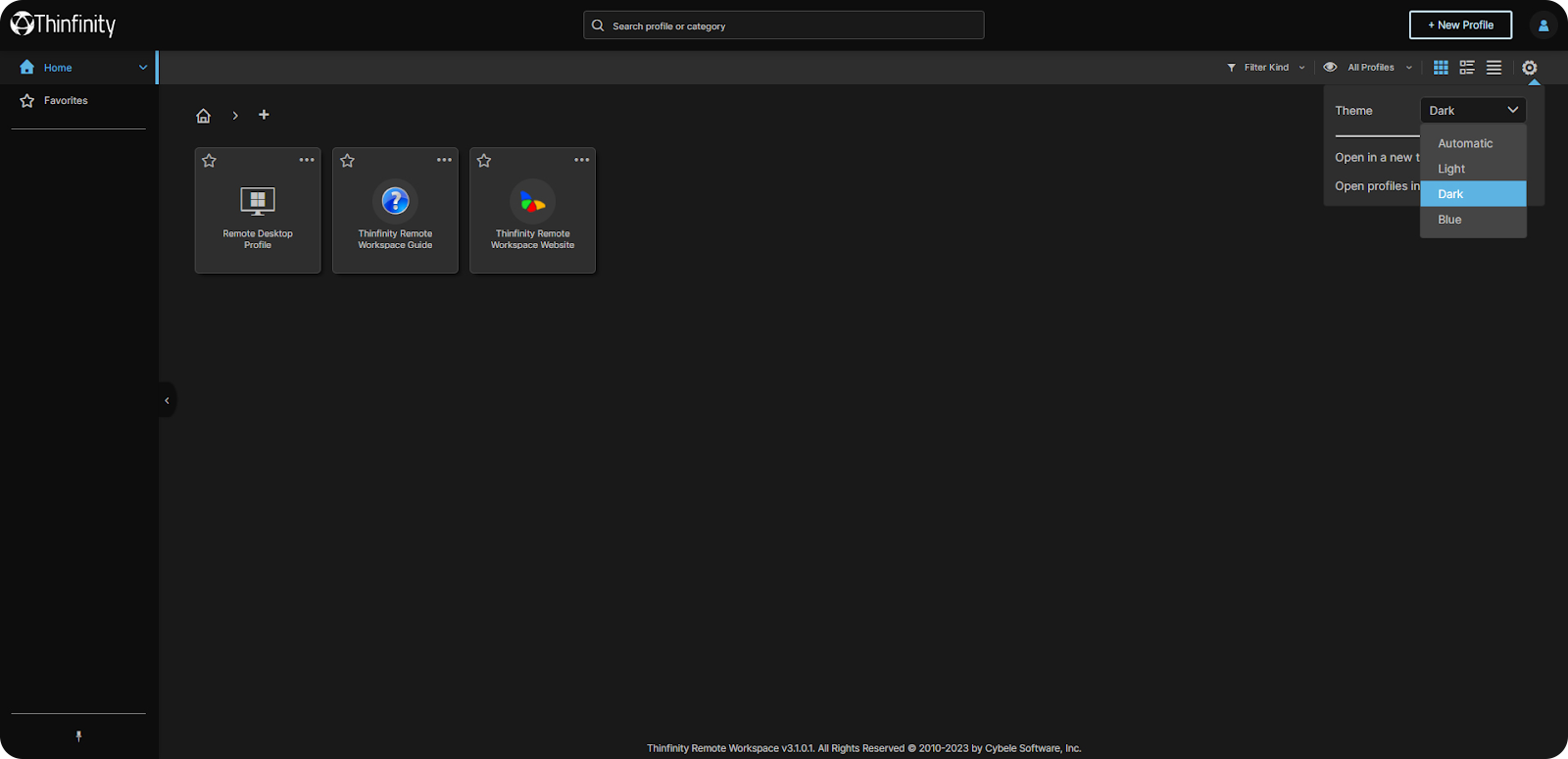

Dark: This is the complement to the Light theme and the default theme when the operating system (or browser) is in Dark mode.

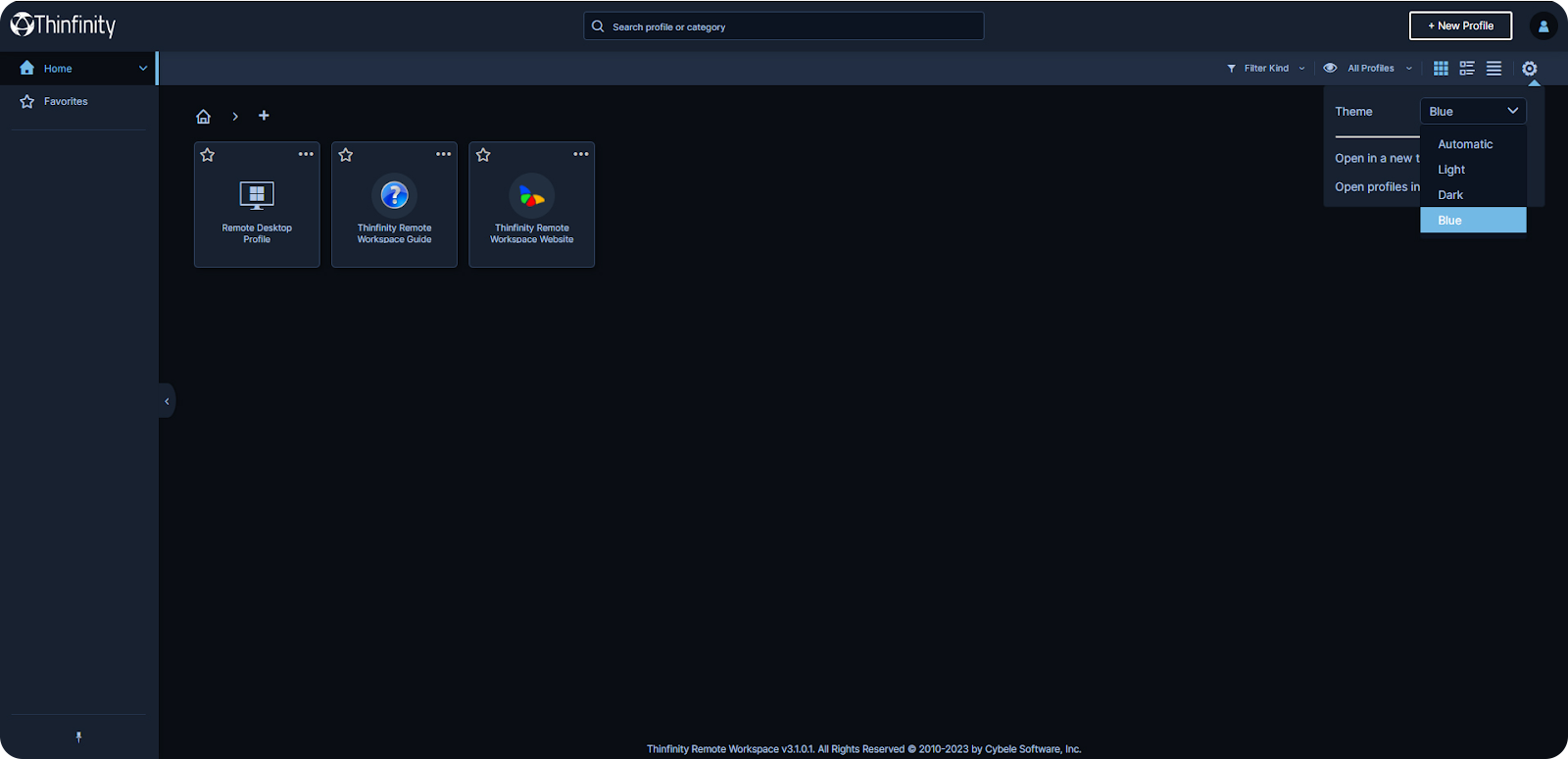

Blue: This is an alternative to Dark mode. This mode must be selected from the Theme selector, although it can be configured by default or to replace the Dark theme if we choose Automatic.


Default theme

The default theme is Automatic. Thinfinity Workspace detects the layout defined in Windows (Settings/Personalization/Colors) and uses its Light or Dark theme, depending on what is selected in the operating system.

However, there is a way to redefine the how all users see Thinfinity Workspace.

This functionality can be extended and used to implement white labeling in Workspace. This customization allows changes to be applied to:
  • The product logo.
  • The favicon displayed in the browser bar/tab.
  • The palette of custom colors and styles to be applied to the interface.
It also allows you to perform several other actions, such as:
  • Adding one or more themes to the list.
  • Selecting a default theme.
  • Selecting a theme to be used when Automatic is selected (i.e., replacements for Light and Dark modes).
  • Deciding whether the user can choose the theme.
  • Deciding whether the user can use the predefined themes in Thinfinity Workspace.

Customization Files

The customization is accomplished using a set of two files:
  1. A JSON configuration file that defines what and how to configure it.
  2. A CSS file based on an API of styles that are applied to each of the pages and sections of Thinfinity Workspace.

JSON Configuration File

The configuration is defined in the custom-themes.json file which should be saved in the following location: C:\ProgramData\Cybele Software\Thinfinity\Workspace\DB\custom-themes.json.

The JSON configuration file should have the following structure (sample data is shown in the example below):
  1. {
  2.                "filename": "C:\\Program Files\\Thinfinity\\Workspace\\Custom\\customtheme.css",
  3.                 "allowUsersToSwitchTheme": true,
  4.                 "allowBuiltInThemes": true,
  5.                 "favicon": "favicon.ico",
  6.                 "productName":"WorkspaceName"
  7.                 "defaultTheme": "MyOwnLightTheme",
  8.                  "lightMode": "MyOwnLightTheme",
  9.                  "darkMode": "MyOwnDarkTheme",
  10.                   "themes": [
  11.                          {
  12.                                    "name": "My Own Theme",
  13.                                    "class": "MyOwnLightTheme"
  14.                           },
  15.                           {
  16.                                     "name": "My Own Dark Theme",
  17.                                     "class": "MyOwnDarkTheme"
  18.                            }
  19. ]

Field

Type

Use / meaning

filename

text

Full path to the .css file containing the style sheet. Assets such as images, logos, backgrounds, favicon, etc. should be placed in the same folder. The name of this file is not important, as Thinfinity Workspace will then apply it as themes__/custom-theme.css.

allowUsersToSwitchTheme

boolean

Specifies whether the user is allowed to customize Thinfinity Worskapce.

allowBuiltInThemes

boolean

Specifies whether the predefined themes are enabled in Thinfinity Workspace.

favicon

text

Name of the favicon.ico file that replaces the Thinfinity Workspace favicon. This file should be in the same path as the custom .css file (the one in the filename field).

productName​​​​​
text
Name of the workspace.

defaultTheme

text

Name of the CSS class representing the theme that will be applied by default.

lightMode

text

Name of the CSS class that represents the Light theme to be applied when Automatic is selected, and the operating system is in light mode.

darkMode

text

Name of the CSS class that represents the Dark theme to be applied when Automatic is selected, and the operating system is in dark mode.

themes

array

Contains one or more themes to add to the list of available themes for the user to choose from. Each element contains the name to be included in the theme selector and the CSS class to be applied to the pages. The example above shows the two options added to the existing ones, which can be selected explicitly or by selecting Automatic and changing the OS style, since both classes are also defined as lightMode and darkMode.


CSS Customization File

Thinfinity Workspace "themes" take advantage of the existence of CSS variables that, when applied internally, define the appearance of the entire interface.

The interface customization is done mainly by redefining the CSS variables (for details, keep reading). To apply these customized variables to a theme, it is necessary to create a CSS class (its name must match the theme class shown in the JSON example above). Inside the curly brackets of the class, you need to add the variables you want to override with their replacement value.

Alert
IMPORTANT! All theme classes must be loaded into a single CSS file.

The example below shows a CSS file that can be used to create two custom themes that only change some colors.

  1. .MyOwnLightTheme {
  2.          --primary-color: #00b0b9;
  3.          --secondary-color: #000000;
  4.          --tertiary-color: #6d2077;
  5.              --dark-primary-color: #00464a;
  6.              --light-primary-color:#cceff1;
  7.              --login-logo: url("<%=@BASEURL%>__themes__/LoginLogoLight.png");
  8.              --desktop-logo: url("<%=@BASEURL%>__themes__/DesktopLogolight.png");
  9.              --mobile-logo: url("<%=@BASEURL%>__themes__/MobileLogoLight.png");
  10. }
  11. .MyOwnDarkTheme {
  12.              --primary-color: #ca212f;
  13.              --secondary-color: #000000;
  14.              --tertiary-color: #6d2077;
  15.              --dark-primary-color: #b63a3a;
  16.              --light-primary-color:#ffe8a7;
  17.              --login-logo: url("<%=@BASEURL%>__themes__/LoginLogoDark.png");
  18.              --desktop-logo: url("<%=@BASEURL%>__themes__/DesktopLogoDark.png");
  19.              --mobile-logo: url("<%=@BASEURL%>__themes__/MobileLogoDark.png");
  20. }

In the sample CSS above, you can see that the path to the images is special: this path is then replaced by Thinfinity Workspace and the files are searched for in the folder specified in the JSON file mentioned above.
Notes
As you can see in the example above, it is not necessary to redefine all variables. By default, the Light theme is applied; any definitions added will simply overwrite the redefined values.

Redefining the values shown in the example above is enough to quickly change the appearance of the interface.

Main

Variable
Use
--primary-color
Default value:   #007DC1

Buttons, links, highlights, icons.


--dark-primary-color
Default value:   #004468

Hover on buttons, titles, active tabs.






--light-primary-color
Default value:    #CEE8F6

Hover on menus, dark-primary-color background.





--secondary-color
Default value:    #4ecc64

--tertiary-color
Default value:    #da9963


Background Colors

Variable
Use
--primary-bgcolor
Default value:   #DBDBDB

Background of the main panel of all views.



--secondary-bgcolor
Default value:  #FFFFFF

Profiles, pop ups, sidebars, table-body.



--tertiary-bgcolor
Default value:    #F2F2F2

Toolbars, table-headers, table-footer, accordion-tabs, overlays, hover-rows.



--hover-bgcolor
Default value:   #F2F2F2

Profile hover, float menu, items hover.



--header-bgcolor
Default value:  --primary-bgcolor

App header.



--toolbar-bgcolor
Default value:   --tertiary-bgcolor

Toolbar.



--sidepanel-header-bgcolor
Default value:   --header-bgcolor

--sidepanel-bgcolor
Default value:   --secondary-bgcolor

--menu-bgcolor
Default value:  --secondary-bgcolor

Side menu.



--dialog-bgcolor
Default value:    --secondary-bgcolor

--submenu-bgcolor
Default value:    --tertiary-bgcolor

--graf-bgcolor
Default value:    --secondary-bgcolor

--light-mode-entity-bg
Default value:   #5db3e216

Profile background with custom icon. Replace "light-mode" with the appropriate theme class:
(--MyOwnTheme-entity-bg). This is a dynamic class and is built from the theme class that uses it.



--bg-image
Default value:    url("<%=@BASEURL%>__themes__/BackgroundImg.png ")

URL of the main panel background image. Replace "BackgroundImg.png" with the appropriate filename.

--bg-size
Default value:    contain

Size of the background image (auto / contain / cover / inherit / initial / revert / unset).

--bg-blend-mode
Default value:   none

Background image blend mode (Use demo https://developer.mozilla.org/en-US/docs/Web/CSS/background-blend-mode).


Buttons

Variable
Use
--button-bgcolor
Default value:    --primary-color

Background color of the primary action button.



--button-txtcolor
Default value:   #FFFFFF

Text color.

--button-bgcolor-h
Default value:   --dark-primary-color

Background color on hover.



--button-txtcolor-h
Default value: #FFFFFF

Text color on hover.

--outline-button-color
Default value:    --button-bgcolor

Text color and border of the secondary action button.



--outline-button-bgcolor-h
Default value:   --button-bgcolor-h

Background color on hover.



--outline-button-color-h
Default value:   --button-txtcolor-h

Text color on hover.

--special-button
Default value:   #FFFFFF


--switcher-button
Default value:    #ADADAD



Links / Menu

Variable
Use
--link-color
Default value:   --primary-color

--link-color-h
Default value:    #5db4e2



--menu-selected-color
Default value:    --dark-primary-color

Text and border color.






--menu-selected-bgcolor
Default value:   --light-primary-color

Background color.



Texts

Variable
Use
--primary-txtcolor
Default value:    --bgcolor

Menu, general texts, profile names, etc.


--secondary-txtcolor
Default value:   #ADADAD

Clearer texts, for example the icons that appear below in the profiles.



--heading-color
Default value:   --dark-primary-color

Headers.



Borders

Variable
Use
--border-color
Default value:   #ADADAD

Borders.



--light-border-color
Default value:   #C4C4C4

Lighter borders.


--separator
Default value:   #B2B2B2

Separators.



Tables

Variable
Use
--table-header-bgcolor
Default value:   --hover-bgcolor

Table header background color.

--table-body-bgcolor
Default value:   --secondary-bgcolor

Table body background color.

--table-body-bgcolor-h
Default value:  --tertiary-bgcolor

Background color of rows on hover.


Inputs

Variable
Use
--input-bgcolor
Default value:   #FFFFFF

Inputs background color.

--header-input-bgcolor
Default value:   --secondary-bgcolor

--input-txtcolor
Default value:   #616161

Text color inside input.

--inputpanel-bgcolor
Default value:    --secondary-bgcolor

Input panel background color as selected.


Logos

Variable
Use
--desktop-logo
Default value:    url("<%=@BASEURL%>__themes_ _/YourLogo.svg ")

Replace "YourLogo.svg" with the name of the appropriate file. Remember that this file must be located in the folder defined for the .css file. It will be used in the product portal where the connections are displayed.
--mobile-logo
Default value:    url("<%=@BASEURL%>_ _themes__/YourMobileLogo.svg ")

Logo used in the mobile header and in the connections with the semi-folded side menu.

--login-logo
Default value:    url("<%=@BASEURL%>__themes__/YourLogo.svg ")

Logo on the login box.

--logo-bg-size
Default value:   contain

Logo size. (auto / contain / cover / inherit / initial / revert / unset)

Analytics

Variable
Use
--light-mode-border-color
Default value:   #ADADAD

Graphics border color.

--light-mode-text-color
Default value:   #616161

Graphics text color.

--light-mode-grid-color
Default value:   #DBDBDB

Grid color in the graphics background.

--light-mode-sessions-color
Default value:   --secondary-color

Default session color in secondary color.

--light-mode-connections-color
Default value:  --primary-color

Default connections in primary color.


Extras

Variable
Use
--disabled
Default value:  #ADADAD

Disabled buttons or texts.

--danger
Default value:  #DC4847

Errors, Danger buttons.
--alert
Default value:   #F17C1C

Warnings.

--allowed
Default value:  #4ECC64

Success messages.

--shadow-color
Default value:    #00000019

Shadows.


Conclusion

Using the JSON configuration file and CSS-based API, Thinfinity Workspace allows users to customize their experience with different themes, from default options to fully personalized interfaces, allowing for extensive visual customization of the product logo, favicon, color palette and styles, providing a more personalized and branded user experience.

If you have any further inquiries or need additional support, please do not hesitate to reach out to us. Our team is always available to help address any questions or concerns you may have.
